Quadralite MiLED RGB 198

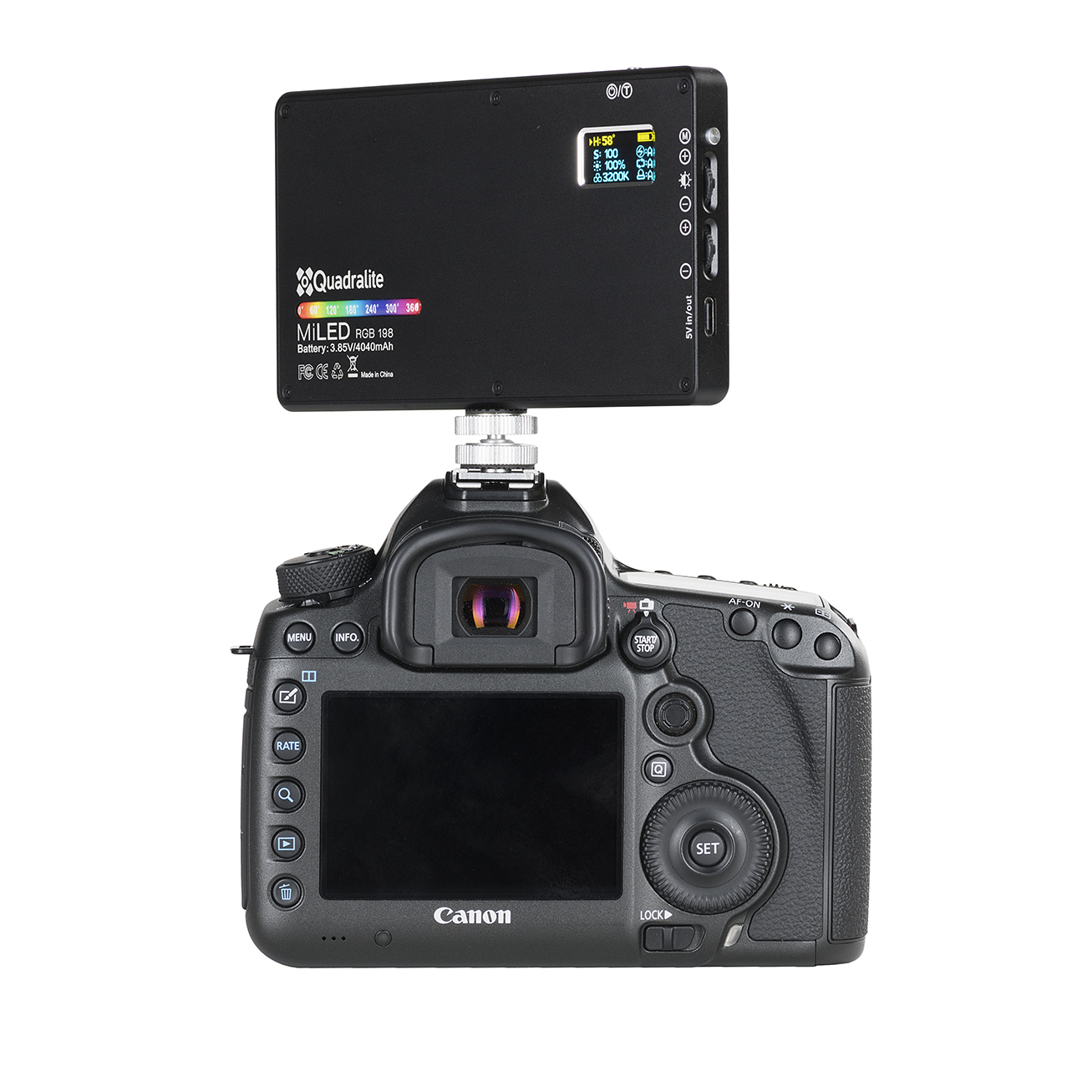

This pocket-sized LED panel can reproduce almost any color in the RGB space. It works with professional cameras as well as smartphones and is compact enough to carry in a pocket, bag or backpack for use almost anywhere. It is useful not only for photographers but also for filmmakers, providing both practical illumination and creative color effects.

600 Wsenergia błysku
TTL + HSSNavigator X
450błysków
1/8000 sHSS
  • ✓Model: Quadralite MiLED RGB 198
  • ✓Product type: Panel studio RGB LED
  • ✓Light source:: LED LED
  • ✓Power:: 13W
  • ✓Color temperature: 3200K – 5600K / ±300K
  • ✓RGB colors:: full
Where to buy?Download product sheet

Quadralite MiLED RGB 198

Full power wherever you need it

This pocket-sized LED panel can reproduce almost any color in the RGB space. It works with professional cameras as well as smartphones and is compact enough to carry in a pocket, bag or backpack for use almost anywhere. It is useful not only for photographers but also for filmmakers, providing both practical illumination and creative color effects. MiLED RGB can display virtually any color required for a shoot. When the light needs to match the surroundings, color temperature can be adjusted manually from 3200 K to 5600 K. MiLED RGB 198 also includes nine preset effects that simulate sources such as candlelight, a monitor screen or police-car lights.

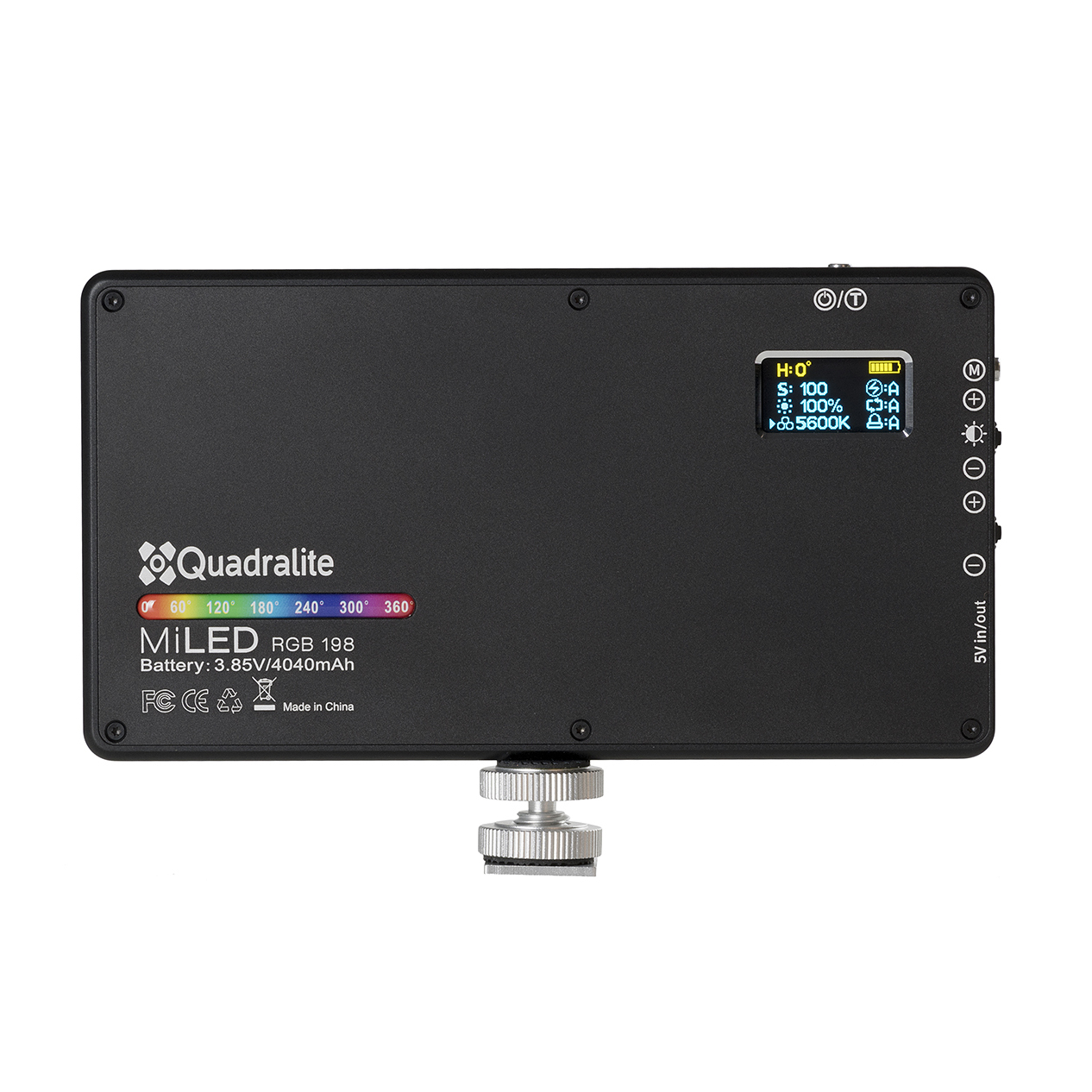

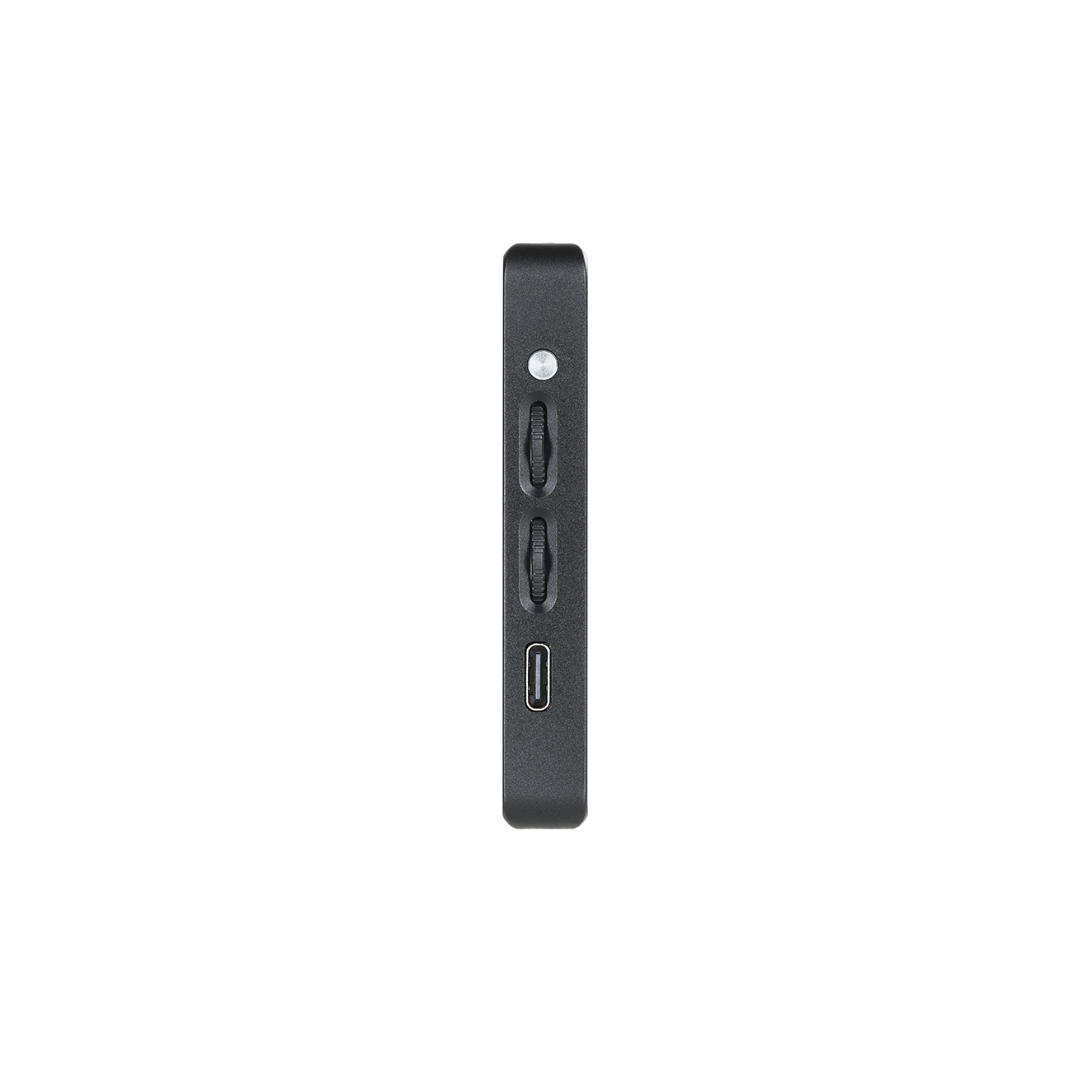

The unit is powered by a built-in lithium-polymer battery (3.85 V / 4040 mAh) providing up to 1.5 hours of operation. In an emergency, MiLED RGB 198 can also serve as a power bank through its integrated USB-C port. It can be charged directly from a computer or with a mobile-phone charger. The aluminum housing keeps weight low while providing good durability. Three 1/4" mounting points on the sides make it easy to attach the panel to different stands and supports.

Quadralite MiLED RGB 198

Features

Selected specificationsThis pocket-sized LED panel can reproduce almost any color in the RGB space.

3200K – 5600K / ±300K

Color temperature

approx. 2.5h

Charging time:

149x80x11.5 mm

Dimensions

205g

Weight

Specification

Technical data

All essential product parameters in one place.

Quadralite MiLED RGB 198
Model
Quadralite MiLED RGB 198
Product type
Panel studio RGB LED
Light source:
LED LED
Power:
13W
Color temperature
3200K – 5600K / ±300K
RGB colors:
full
Number of LEDs:
198
Beam angle
120°
Color rendering:
Ra>96
Brightness adjustment
Stepless, 10–100%
Housing material
Aluminium
Cooling:
passive
Power supply
built-in Battery Li-PO 3.85V/4040mAh
Performance battery @5600K, 100%:
90min
Charging current
5V/1A, 5V/2A
Output current
5V/2A
Port charging:
USB Type-C
Charging time:
approx. 2.5h
Output port
USB Type-C
Display LCD:
OLED
Mounting points
3x ¼”
Operating temperature range:
+10ºC to +40ºC
Dimensions
149x80x11.5 mm
Weight
205g

Mobile LED

Quadralite Mobile LED – mobile LED lighting for photography and film

Quadralite Mobile LED is a broad group of compact continuous light sources designed for work where mobility, quick setup and the ability to freely shape the character of the lighting matter. The line combines various types of LED lamps – from small panels and (…)

Explore the full product line →
OFFICIAL QUADRALITE STORE Quadralite MiLED RGB 198
Order online →

COMPATIBILITY

Compatible products

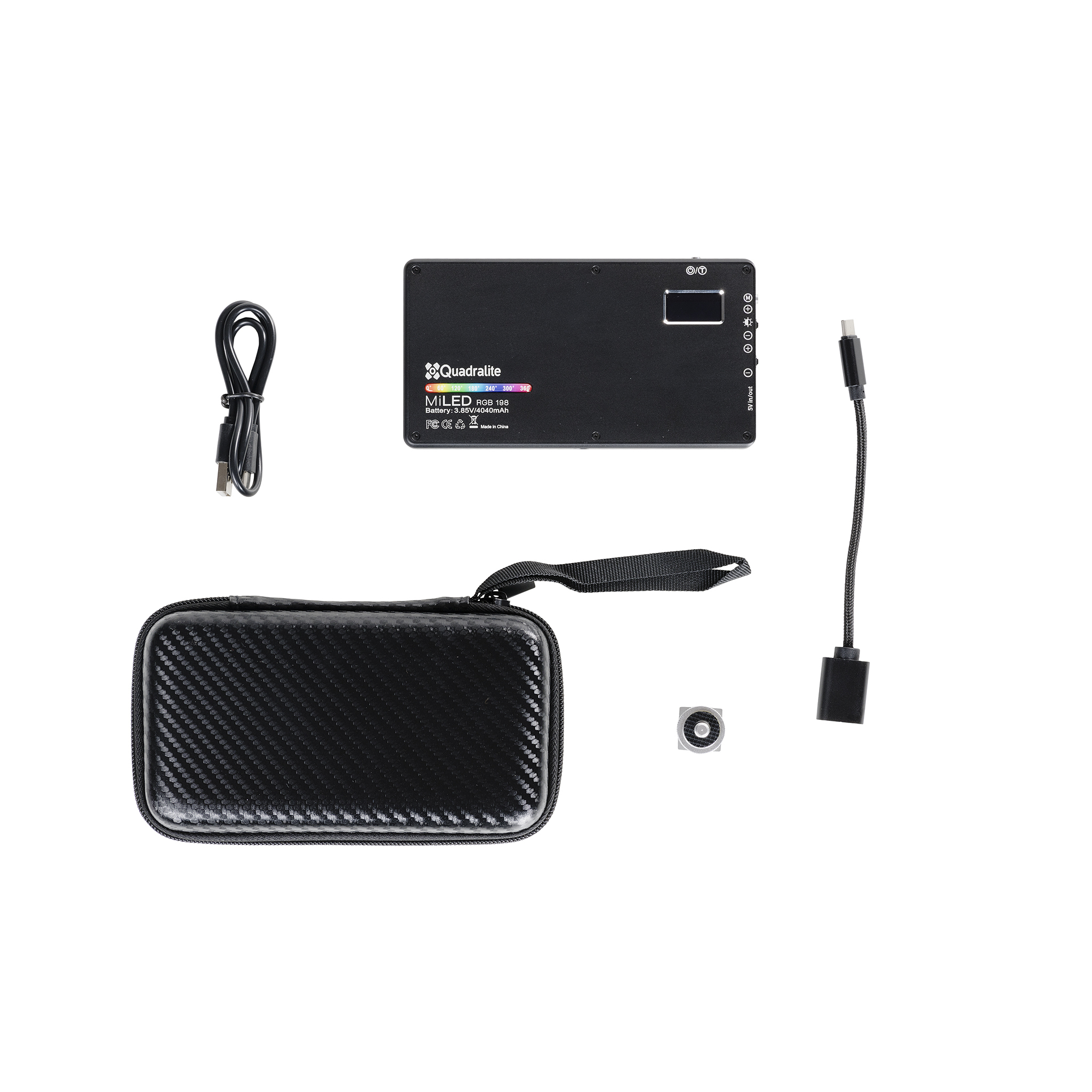

What’s in the box

What’s in the box

  • ✓LED panel Quadralite MiLED RGB 198
  • ✓Cabling
  • ✓Case
  • ✓Original packaging
