Quadralite Thea LED 260
Thea LED 260 panels are designed specifically for mobile use. High-CRI LEDs (CRI >95) produce up to 2200 lx at 0.5 m / 5600 K of high-quality, flicker-free light, while color temperature is adjustable from 3300 to 5600 K.
- ✓Model: Quadralite Thea LED 260
- ✓Number of LEDs: 260
- ✓Power (maximum): 30W
- ✓Power adjustment range: 10%~100%
- ✓Color temperature: 3300~5600 ±300K
- ✓Photometry: 1250 lx (116fc)
Quadralite Thea LED 260
Full power wherever you need it

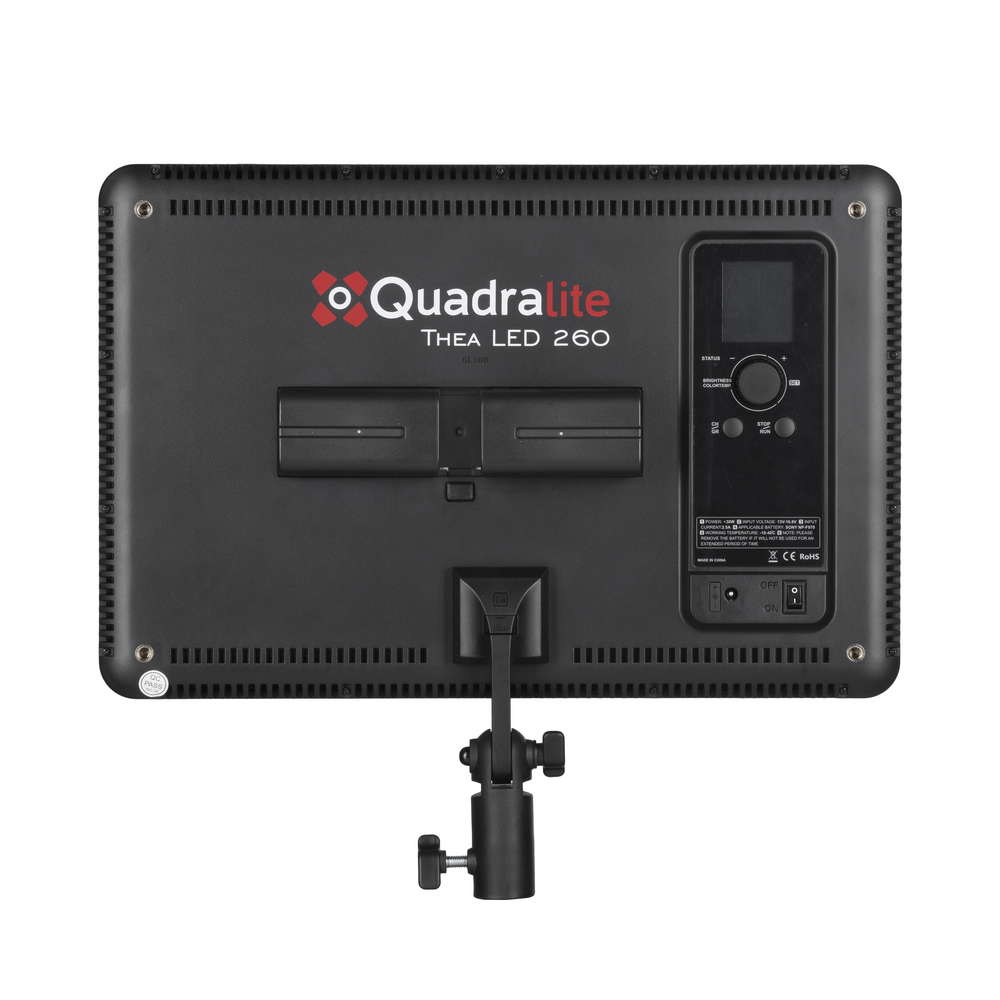

Thea LED 260 panels are designed specifically for mobile use. High-CRI LEDs (CRI >95) produce up to 2200 lx at 0.5 m / 5600 K of high-quality, flicker-free light, while color temperature is adjustable from 3300 to 5600 K. The rear control panel is used to adjust brightness and color temperature, and the wireless remote provides convenient operation from a distance in the studio or on location.

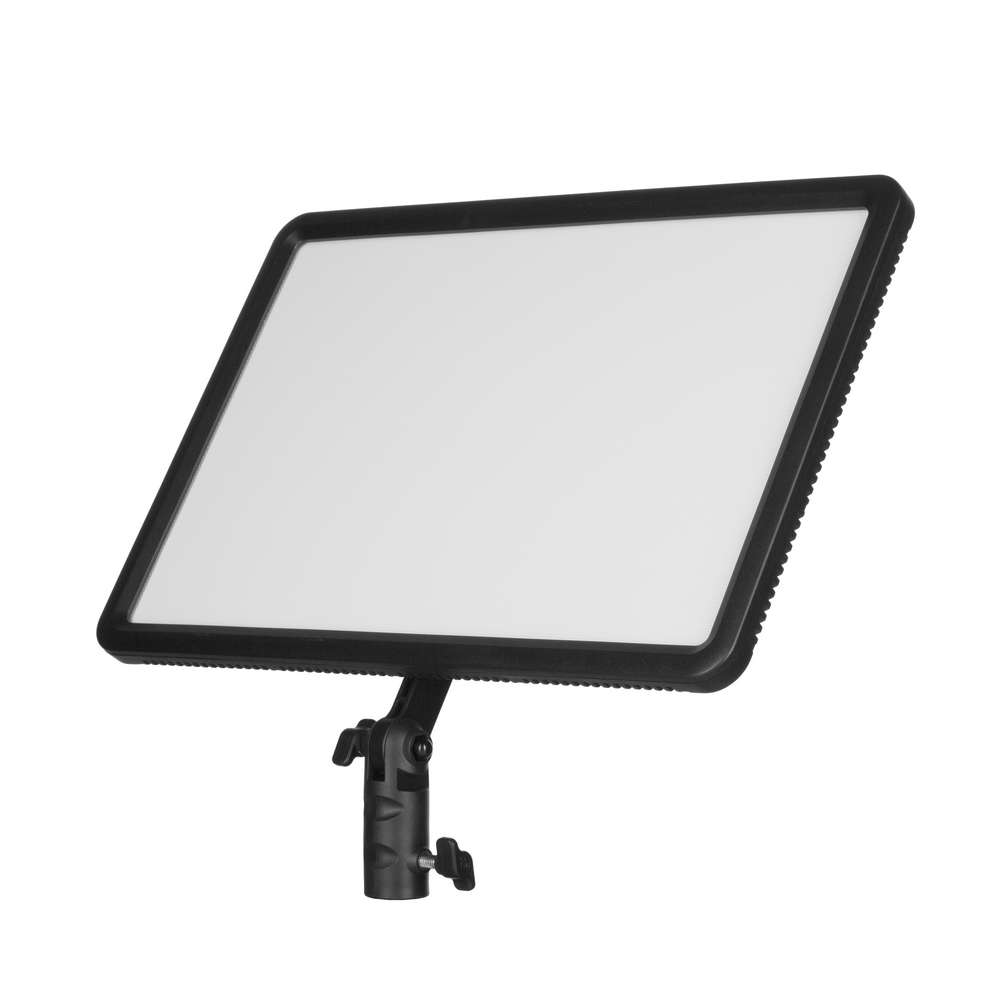

The edge-mounted LEDs and efficient diffuser allow the entire panel surface to emit light evenly. This helps Thea LED 260 illuminate a scene without the unwanted effect of multiple shadows.

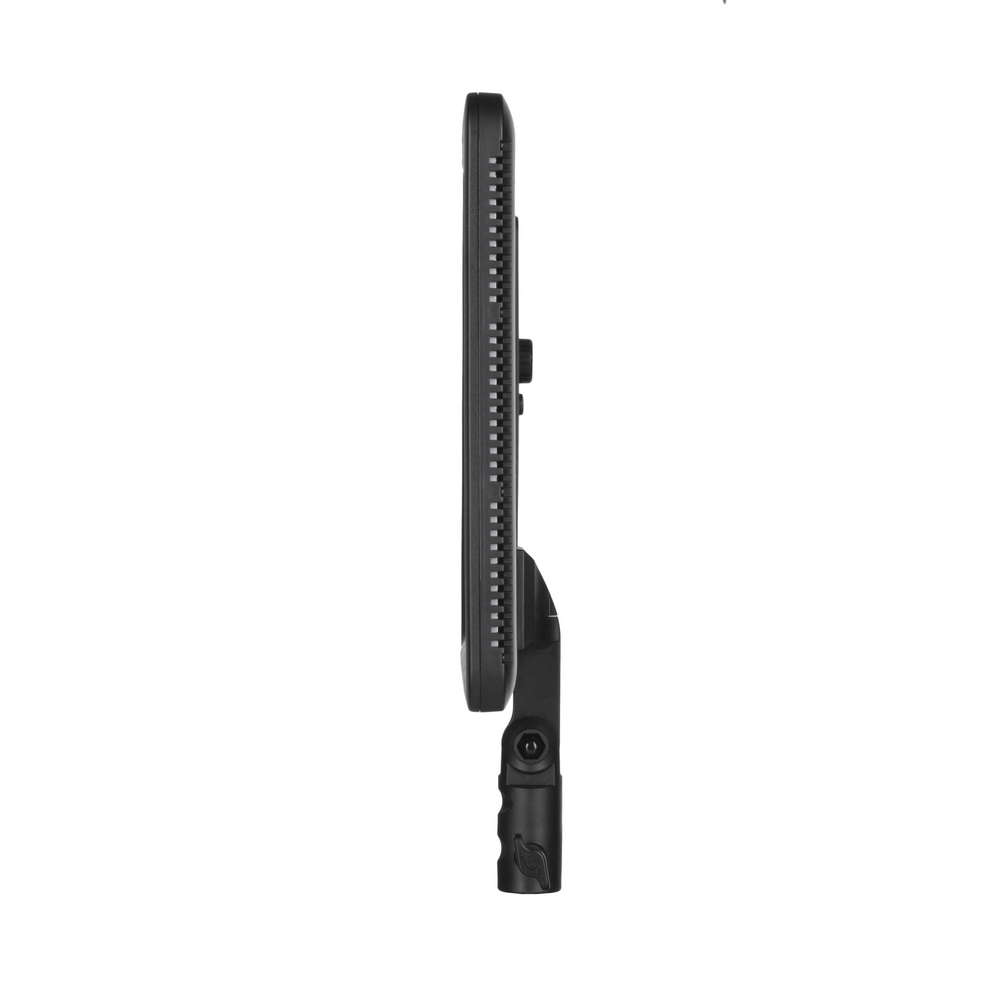

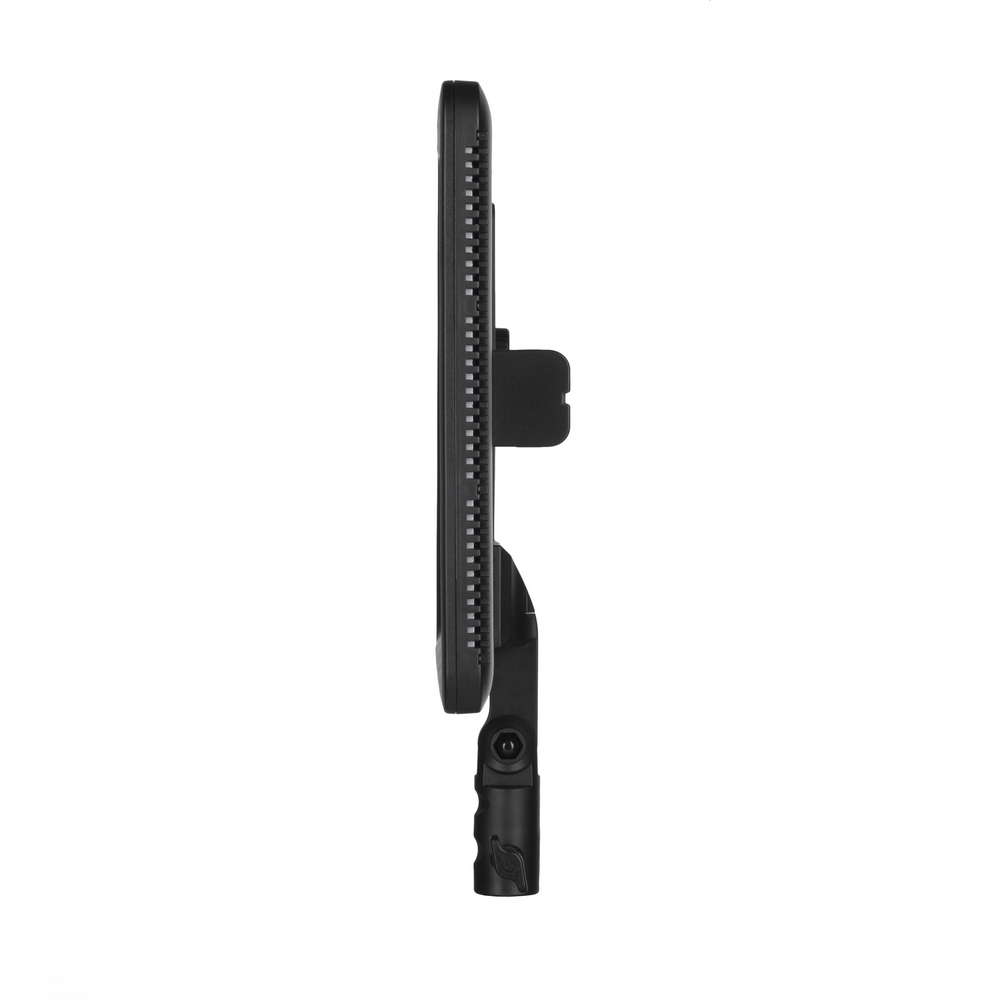

Thea LED 260 combines high functionality with compact dimensions and low weight. The panel weighs only 950 g and is just 15 mm deep. It includes a tilt-adjustable mounting bracket with a quick-mount system, allowing fast installation on standard lighting stands without additional accessories.
Thea LED 260 panels are powered by widely available Sony NP-F970 (7.4 V) video batteries. Panasonic VBG6 batteries can also be used with an optional adapter sold separately. A mains power supply is included for stationary operation. With the separately available Quadralite PowerPack Lx cable, the panel can also be connected to a Quadralite PowerPack 58 battery with a capacity of 5800 mAh.
Detailed warranty terms for Quadralite products can be found on the Warranty page.

Features
Selected specificationsThea LED 260 panels are designed specifically for mobile use.
TLCI
Color temperature
Photometry
Specification
Technical data
All essential product parameters in one place.

- Model
- Quadralite Thea LED 260
- Number of LEDs
- 260
- Power (maximum)
- 30W
- Power adjustment range
- 10%~100%
- Color temperature
- 3300~5600 ±300K
- Photometry
- 1250 lx (116fc)
- CRI
- >95
- TLCI
- ≥94
- Wireless remote
- Yes
- Channels/Groups
- 16/6
- Filters
- -
- Temperature operation
- -10~40°C
- Battery power
- 2x 7.4V NP-F970 1x PowerPack 58*
- DC power supply
- 13-16.8V
- Dimensions (net)
- 360 x 240 x 27mm
- Weight (net)
- 917g
Mobile LED
Quadralite Mobile LED – mobile LED lighting for photography and film
Quadralite Mobile LED is a broad group of compact continuous light sources designed for work where mobility, quick setup and the ability to freely shape the character of the lighting matter. The line combines various types of LED lamps – from small panels and (…)
Explore the full product line →COMPATIBILITY
Compatible products

Quadralite Verso 160 AL Basic
SKU: 5872✓Direct fit
View product →
Quadralite Verso 190 AL Basic
SKU: 5871✓Direct fit
View product →
Quadralite 20
SKU: 4350✓Direct fit
View product →
Quadralite Reporter 200 Pro TTL
SKU: 5279✓Direct fit
View product →
Quadralite Verso 190 AL
SKU: 5690✓Direct fit
View product →
Quadralite Verso 200 CF
SKU: 4993✓Direct fit
View product →What’s in the box

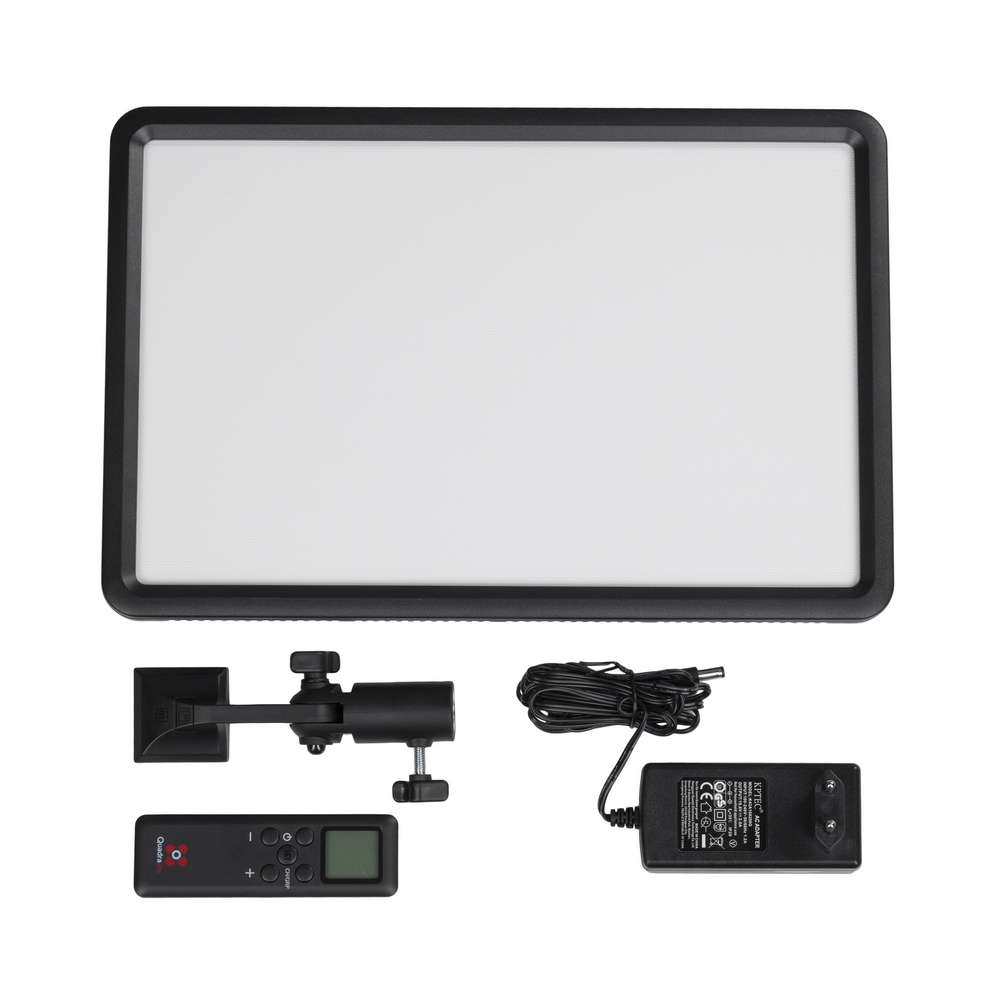

What’s in the box
- ✓LED panel Quadralite Thea 260
- ✓Holder
- ✓AC power adapter
- ✓Wireless remote
- ✓Original packaging
